TS 420 CUTQUIK 14 "

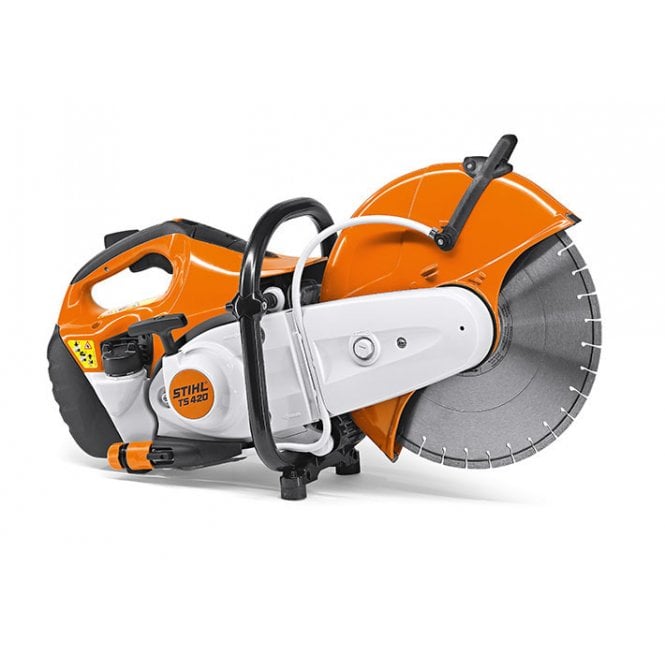

TS 420 Petrol Cut-off Machine
Compact and robust 3.2-kW cut-off machine (350mm cutting wheel)
Long-life filter system with cyclone pre-separation makes on site maintenance unnecessary. Extremely low vibration levels (3.9m/s²). High performance engine with stratified charge system. Compact design and optimised balance for excellent cutting and guide characteristics. For use with 350mm cutting wheel. ElastoStart, primer pump and decompression valve. Bayonet filler cap for tool free opening. Can be hand held or used with the FW 20 cart. Supplied with abrasive cutting wheel
Technical data
| Technical data | Value |
|---|---|
| CO2 g/kWh | 747 |
| Capacity cm3 | 66.7 |
| Performance kW | 3.2 |
| Vibration value, right m/s2 1) | 3.9 |
| Weight 2) | 9.75 |
| Sound pressure level dB(A) 3) | 98 |
| Sound power level dB(A) 3) | 109 |
| Vibration value, left m/s2 1) | 3.9 |
| Tank volume l | 0.71 |
| Power output kW/bhp | 3.2/4.4 |
| Weight kg 4) | 9.6 |
| Sound pressure level dB(A) 5) | 98.0 |
| Sound power level dB(A) 5) | 109.0 |
| Vibration levels left/right m/s² 6) | 3.9/3.9 |
| Cutting wheel mm/in | 350 / 14 |
| EPA Certified fuel consumption l/h | 2.048 |
1) K-factor according to DIR 2006/42/EC = 2m / s ²
2) Complete, without tools
3) K-factor according to DIR 2006/42/EC = 2.5 dB (A)
4) Without cutting wheel
5) Power factor according to DIR2006/42/EC=2.5(dB(A))
6) (K) factor according to Dir. 2006/42/EC = 2m/s²
